4 Axle Container Wagons For Sale
Unit shown is an example of units available and is offered subject to prior sale
Sales Enquiry
Enquire NowBrochure
Download NowWagons are 4 axle with a maximum loading of 22.5 tonnes per axle. Minimum 70m curve radius. SKF type 713500 axle bearings, mono block type 58H wheels.

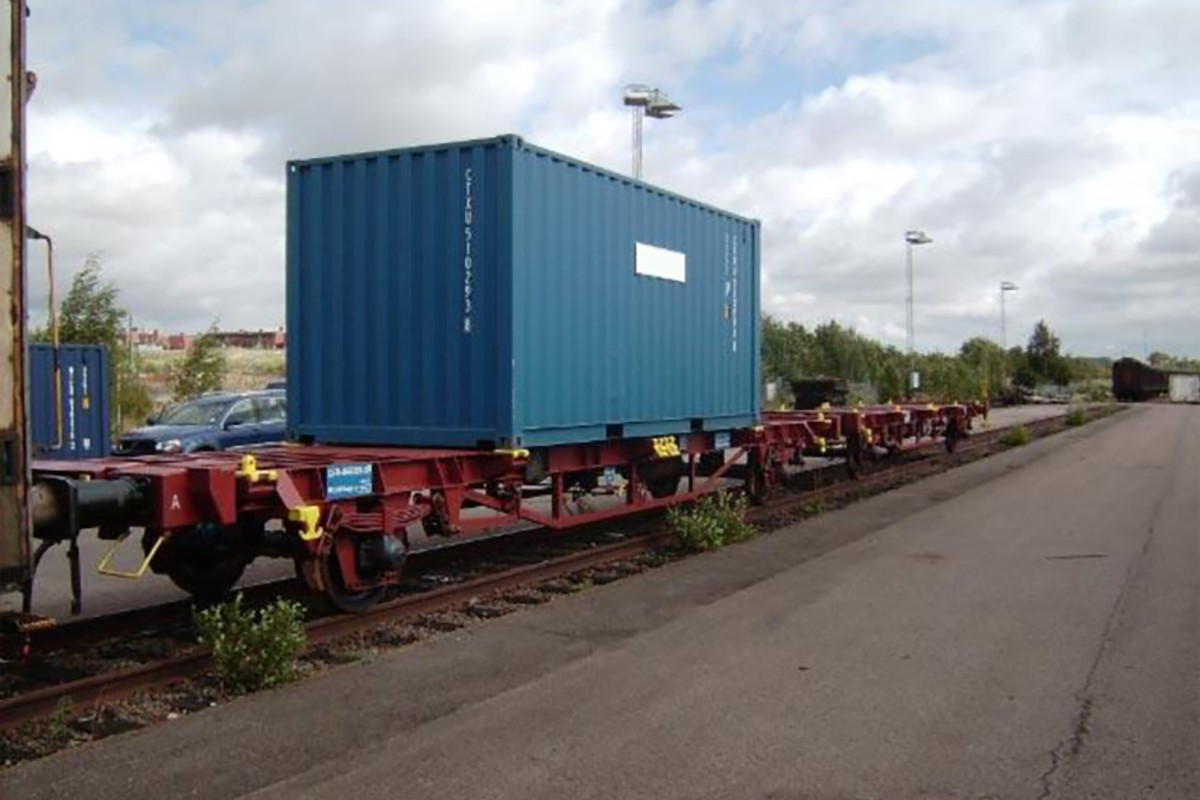

Cargo capacity: 4 X 20 foot container, 2 X 40 foot container or 2 x 20 foot container central on each side.
Photo Gallery
Click photographs to enlarge
Detailed Specification
Wheel arrangement: 8 WheelManufacturer: Talbot Waggonbau Aachen
Built: 2007 - 2008
Quantity offered: 48
Gauge: 1,435m (4' 8.5")
Type: Flat Wagon
Construction: Steel
Length: 26,684mm (87' 6.5")
Width: 2,500mm (8' 2.4")
Height: 1,170mm (3' 10")
Tare weight: 25.5t (metric)
Payload weight: 67.5t (metric)
Gross weight: 90t (metric)
Rated maximum speed: 100km/h (full load) / 120km/h (empty) (62mph (full load) / 75mph (empty))
Minimum curve radius: 70m (229' 8")
Brake type: Knorr type KE-GP
Coupler type: Screw
